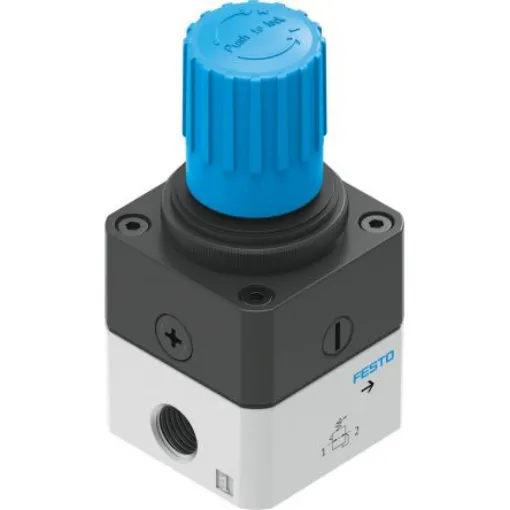

Festo G 1/4 Pneumatic Regulator - 1bar to 4bar, 1/4in, 12bar max. input, 159501 - LRP-1/4-4
Achieve precise pressure control with the Festo G 1/4 Pneumatic Regulator, designed for efficiency and reliability.
Manufacturer part number: LRP-1/4-4
GTIN: 4052568006303
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 4bar
Minimum Outlet Pressure = 1bar
Maximum Input Pressure = 12bar
Manufacturer Series = LRP
Pressure Gauge Port Size = G 1/4
Port Connection Thread Size = 1/4in
Pressure Gauge Port Thread Size = 1/4in
Maximum Flow Rate = 2300L/min
Typical Flow Rate = 2000L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Overall Width = 50mm
LRP-1/4-4 Precision Pressure Regulator G1/4 pneumatic connection Rotary knob actuator lock Piloted precision diaphragm regulator design structure Standard nominal flow rate of 2,000 I/min The regulator can either be mounted using front panel installation or line installation Aluminium housing materials which conform to RoHS
