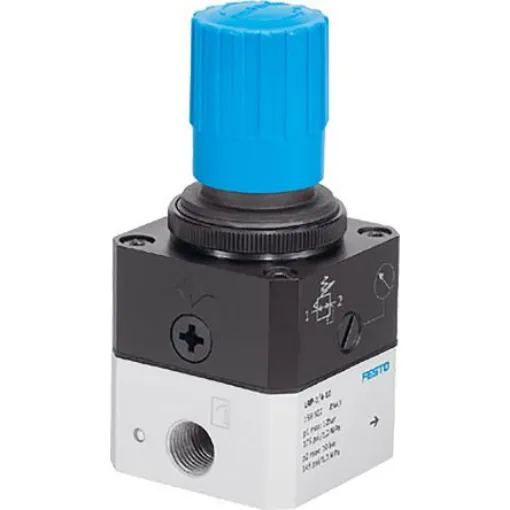

Festo G 1/4 Pneumatic Regulator - 1bar to 12bar, 1/4in, 7bar max. input, 159500 - LRP-1/4-0,7
Achieve precise pressure control with the Festo G 1/4 Pneumatic Regulator, ideal for sensitive applications.
Manufacturer part number: LRP-1/4-0,7
GTIN: 4052568011734
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 1bar
Maximum Input Pressure = 7bar
Port Connection Thread Size = 1/4in
Maximum Flow Rate = 2300L/min
Typical Flow Rate = 800 to 2300L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Overall Height = 111mm
LRP Series PrLRP Series Precision Pressure Regulatorecision Pressure Regulator. The LRP series of precision pressure regulators by FESTO offer precise pressure adjustment, both in static and dynamic applications. The regulator benefits from good response characteristics during rapid changes to the operating pressure and flow rate. Features and Benefits. ;ul> ;li>Suitable for sensitive applications requiring a hysteresis of 0.02 bar ;/li> ;li>In the event of a failure of the compressed air supply, the outlet pressure is vented via a connection to the secondary venting ;/li> ;li>The outlet pressure can be set within the pressure regulation range ;/li> ;li>Operating pressure fluctuations are almost entirely compensated ;/li> ;li>The regulating valve has a pilot-actuated precision constructional design ;/li> ;/ul>
