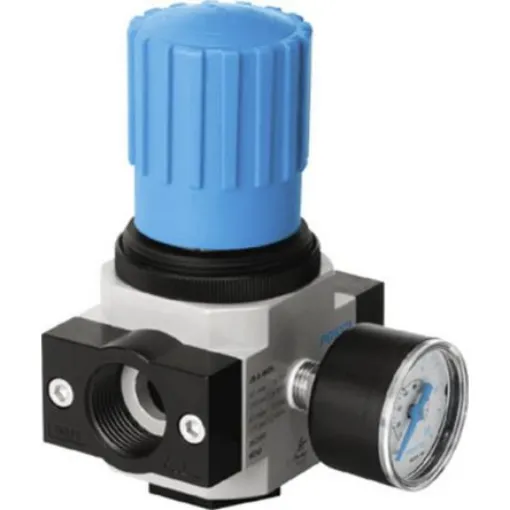

Festo G 1/4 Pneumatic Regulator - 0.5bar to 7bar, 1/4 in, 16bar max. input, 192301 - LR-1/4-D-7-I-MINI
Achieve precise pressure control with the Festo G 1/4 Pneumatic Regulator, ideal for various applications.
Manufacturer part number: LR-1/4-D-7-I-MINI
GTIN: 4052568079307
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 7bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Port Connection Thread Size = 1/4 in
Typical Flow Rate = 1600L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 192301mm
The Festo pressure regulator LR-1/4-D-7-I-MINI With increased return exhaust, working pressure up to 7 bar. Also suitable for front panel mounting it has two pressure gauge connections for different fitting options. Good regulating characteristics with minimal pressure hysteresis.Size Mini Series D Actuator lock Rotary knob with lock Assembly position Any Design structure directly-controlled diaphragm regulator
