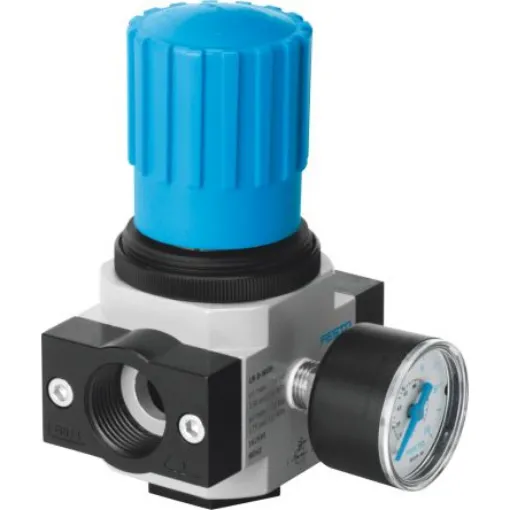

Festo G 1/4 Pneumatic Regulator - 0.5bar to 7bar, 1/4 in, 16bar max. input, 162583 - LR-1/4-D-7-MINI

Port Connection = G 1/4
Maximum Outlet Pressure = 7bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Pressure Gauge Port Size = G 1/4
Port Connection Thread Size = 1/4 in
Pressure Gauge Port Thread Size = 1/4 in
Typical Flow Rate = 1600L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 162583mm

Festo G 1/4 Pneumatic Regulator, 0.5 bar to 7 bar - D Series - LR-1/4-D-7-MINI Festos efficient G 1/4 pneumatic pressure regulator lets you maintain constant pressure in your pneumatic system, ensuring no compressed air is wasted. With a working pressure range between 0.5 and 7 bar, its suited to a variety of pneumatics applications, including medical equipment and compressed air pumps. It also features an analogue gauge to enable precise adjustment. The housing and connecting plate of the pneumatic regulator are both made of die-cast zinc, offering corrosion resistance for better reliability in the long term.• G 1/4 connecting thread • Weight of 350 g • Minimum outlet pressure of 0.5 bar • Maximum outlet pressure of 7 bar • Maximum input pressure of 16 bar • Typical flow rate of 1600 L/min • Minimum operating temperature of -10°C • Maximum operating temperature of +60°C • Can be used for both compressed air and inert gases Range Information • Festo D Series components feature sturdy metal construction to withstand heavy industrial usage • The range features both combination and individual air preparation units • Available in a wide range of sizes from micro to maxi • Suitable for all standard compressed air applicationsThe Festo D series MINI size pressure regulator has a G1/4 pneumatic port connecting thread. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 7 bar.Actuator lock - rotary knob with lock Assembly position - any Nominal flow rate - 1,600 l/min
