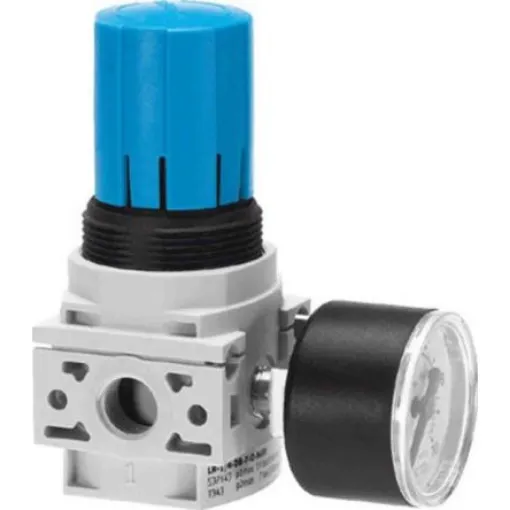

Festo G 1/4 Pneumatic Regulator - 0.5bar to 7bar, 1/4 in, 10bar max. input, 539682 - LR-1/4-DB-7-MINI

Festo G 1/4 Pneumatic Regulator, 7 bar Maximum - DB Series - LR-1/4-DB -7-MINI This Festo pneumatic regulator has a directly controlled diaphragm-style construction with a built-in pressure gauge. A regulator of this kind is commonly used in pneumatic air compressors. It automatically cuts off the airflow at a certain pressure for quick and accurate regulation, reducing the likelihood of wasting compressed air. To ensure operating air stays safely inside the chamber in case of an air supply failure, this mini-sized regulator has a rotary knob with an actuator lock.• Maximum input pressure of 10 bar • Maximum outlet pressure of 7 bar • Minimum outlet pressure of 0.5 bar • G 1/4 port connection • Typical flow rate of 1,300 L/min • Operating temperature range of -5°C to + 50°C • Weight of 150 g • Reinforced polyamide construction • Nitrile rubber seals Range Information • The DB series features high-quality polymer designs • All DB series products are available in mini body sizes • Unified port sizes of G 1/8 and G 1/4 • All DB series components are fully compatible with components in Festos D series of metal air preparation units • Filtration levels of both 40 µm and 5 µmThe Festo DB series MINI size directly controlled pressure regulator has a G1/4 pneumatic port connecting thread. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 7 bar.Actuator lock - rotary knob with lock Assembly position - any Nominal flow rate - 1,300 l/min
