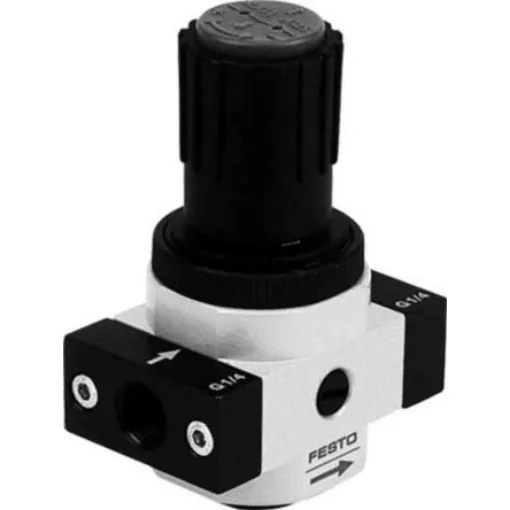

Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 16bar max. input, 162591 - LR-1/4-D-O-MINI
Efficiently regulate pressure with the Festo G 1/4 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: LR-1/4-D-O-MINI
GTIN: 4052568007935
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Typical Flow Rate = 1500L/min
Model Number p = 162591
The Festo D series MINI size pressure regulator has a G1/4 pneumatic port connecting thread. It is a directly-controlled diaphragm regulator design structure without pressure gauge. The regulator has a working pressure up to 12 bar.Actuator lock - rotary knob with lock Assembly position - any Nominal flow rate - 1,500 l/min
