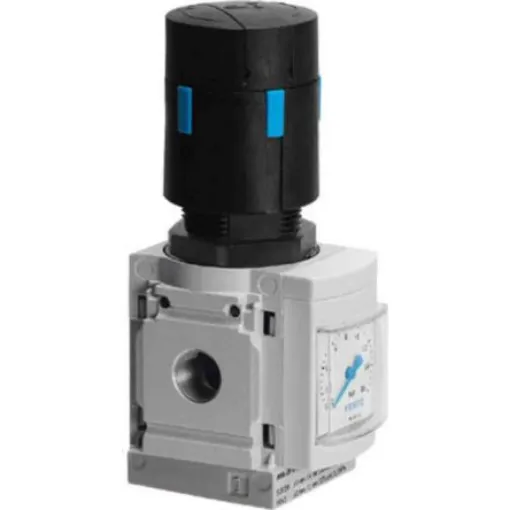

Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 14bar max. input, 529485 - MS4-LRB-1/4-D7-AS
Efficiently regulate pressure with the Festo G 1/4 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: MS4-LRB-1/4-D7-AS
GTIN: 4052568015701
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 14bar
Manufacturer Series = MS
Typical Flow Rate = 1500L/min
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 529485
The Festo MS series pressure regulator is used for manifold assembly with a thread connection size of G1/4. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 12 bar.Actuator lock - rotary knob with lock Assembly position - any Size - 4
