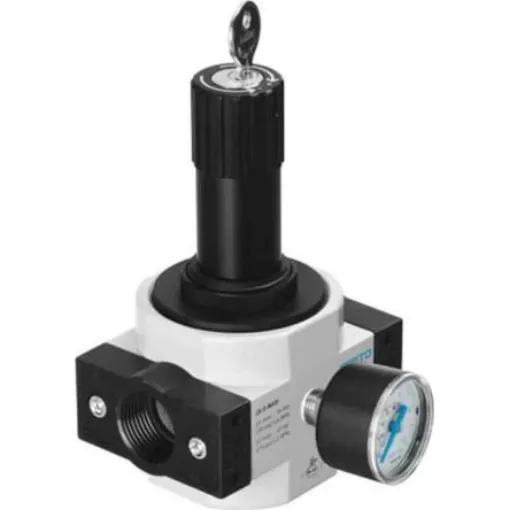

Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4 in, 16bar max. input, 194610 - LRS-1/4-D-MINI
Achieve precise pressure control with the Festo G 1/4 Pneumatic Regulator, designed for reliability and efficiency.
Manufacturer part number: LRS-1/4-D-MINI
GTIN: 4052568153496
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Port Connection Thread Size = 1/4 in
Typical Flow Rate = 1500L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 194610mm
The Festo D series pressure regulator has a G1/4 pneumatic port connecting thread with lockable regulator head. It is a directly-controlled diaphragm regulator design structure with pressure gauge. It has a working pressure up to 12 bar.Size = mini Actuator lock = rotary knob with lock Assembly position = any
