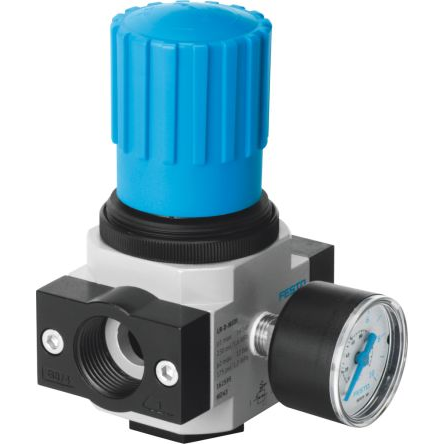

Festo G 1/4 Pneumatic Regulator - 0.5bar to 12bar, 1/4 in, 16bar max. input, 159625 - LR-1/4-D-MINI

Festo G 1/4 Pneumatic Regulator, 0.5 bar to 12 bar - D Series - LR-1/4-D-MINI This Festo D series mini pressure regulator will keep your pneumatic systems operating efficiently. It can be manually controlled and its built-in pressure gauge lets you accurately adjust the outlet pressure to your requirements. A working pressure of up to 12 bar and a maximum input pressure of 16 bar make the pneumatic regulator suitable for both low and high-pressure situations. The rotary knob allows for easy alignment with other components, while the actuator lock ensures a secure assembly.• Weight of 350 g • Minimum outlet pressure of 0.5 bar • Maximum outlet pressure of 12 bar • Maximum input pressure of 16 bar • Typical flow rate of 1500 L/min • Minimum operating temperature of -10°C • Maximum operating temperature of +60°C • Versatile and suitable for both compressed air and inert gases • Die-cast zinc housing and connecting plate are corrosion-resistant for extra reliability Range Information • Festo D Series components give you precise control over the flow of air through pneumatic systems • Units available in mini, midi and maxi sizes • Suitable for a wide range of applications with standard compressed air requirements • Durable metal design means long operating life even in harsh industrial environmentsThe Festo D series MINI size pressure regulator has a G1/4 pneumatic port connecting thread. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 12 bar.Actuator lock - rotary knob with lock Assembly position - any Nominal flow rate - 1,500 l/min
