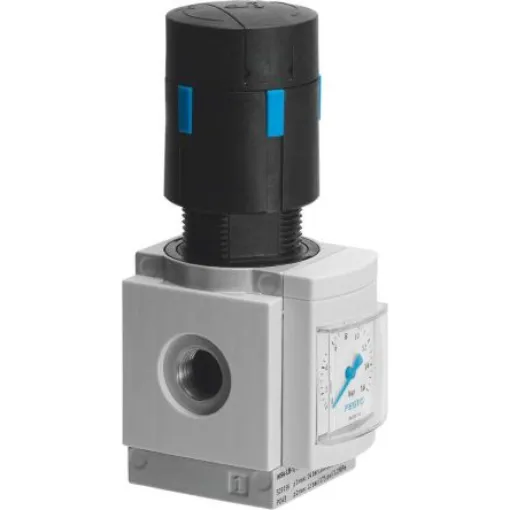

Festo G 1/4 Pneumatic Regulator - 0.3bar to 7bar, 14bar max. input, 529479 - MS4-LRB-1/4-D6-AS
Achieve precise pressure control with the Festo G 1/4 Pneumatic Regulator, designed for reliable performance.
Manufacturer part number: MS4-LRB-1/4-D6-AS
GTIN: 4052568085254
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 7bar
Minimum Outlet Pressure = 0.3bar
Maximum Input Pressure = 14bar
Manufacturer Series = MS
Typical Flow Rate = 1700L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 529479
The Festo MS series pressure regulator is used for manifold assembly with a thread connection size of G1/4. It is a directly-controlled diaphragm regulator design structure with pressure gauge. The regulator has a working pressure up to 7 bar.Actuator lock - rotary knob with lock Assembly position - any Size - 4
