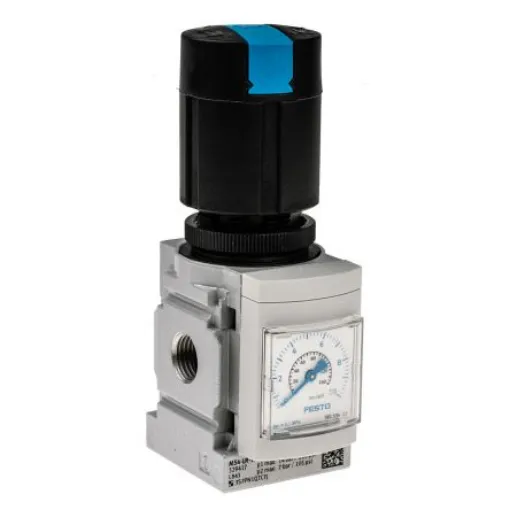

Festo G 1/4 Pneumatic Regulator - 0.3bar to 7bar, 1/4in, 14bar max. input, 529417 - MS4-LR-1/4-D6-AS
Achieve precise pressure control with the Festo G 1/4 Pneumatic Regulator, designed for efficiency and reliability.
Manufacturer part number: MS4-LR-1/4-D6-AS
GTIN: 4052568006754
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 7bar
Minimum Outlet Pressure = 0.3bar
Maximum Input Pressure = 14bar
Manufacturer Series = MS-LR
Pressure Gauge Port Size = G 1/4
Port Connection Thread Size = 1/4in
Pressure Gauge Port Thread Size = 1/4in
Maximum Flow Rate = 7500L/min
Typical Flow Rate = 1800L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Overall Height = 117.5mm
MS4-LR-1/4-D6-AS Pressure Regulator Rotary knob actuator lock Maximum pressure hysteresis of 0.25 bar Standard nominal flow rate of 1,800 I/min G1/4 pneumatic connection Aluminium die-cast housing material
