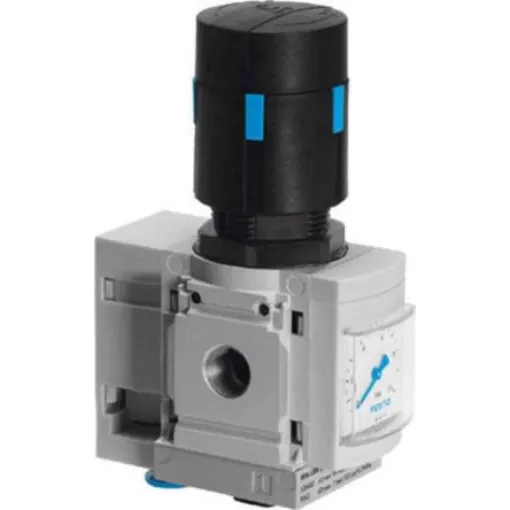

Festo G 1/4 Pneumatic Regulator - 0.3bar to 4bar, 14bar max. input, 529474 - MS4-LRB-1/4-D5-AS-BD
Achieve precise pressure control with the Festo G 1/4 Pneumatic Regulator, designed for efficiency and reliability.
Manufacturer part number: MS4-LRB-1/4-D5-AS-BD
GTIN: 4052568085230
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 4bar
Minimum Outlet Pressure = 0.3bar
Maximum Input Pressure = 14bar
Manufacturer Series = MS
Maximum Flow Rate = 650L/min
Typical Flow Rate = 640L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Model Number p = 529474
The Festo MS series pressure regulator is used for manifold assembly with a thread connection size of G1/4. It is a directly-controlled diaphragm regulator design structure and angled outlet block with QS push-in connector. The regulator has a working preActuator lock - rotary knob with lock Assembly position - any Size - 4
