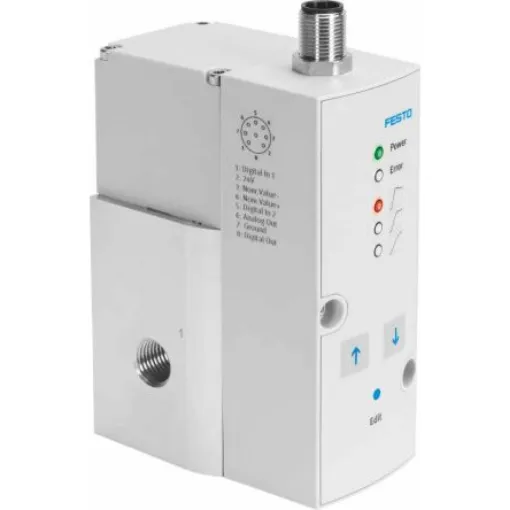

Festo G 1/4 Pneumatic Regulator - 0.06bar to 6bar, 1/4 in, 8bar max. input, 571299 - VPPM-8L-L-1-G14-0L6H-A4P

Port Connection = G 1/4
Maximum Outlet Pressure = 6bar
Minimum Outlet Pressure = 0.06bar
Maximum Input Pressure = 8bar
Manufacturer Series = VPPM
Pressure Gauge Port Size = G 1/4
Port Connection Thread Size = 1/4 in
Pressure Gauge Port Thread Size = 1/4 in
Typical Flow Rate = 1750L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = +10°C
Maximum Operating Temperature = +50°C
Model Number p = 571299mm

Festo Pneumatic Regulator, G 1/4, 0.06 Bar to 6 Bar - VPPM Series - VPPM-8L-L-1-G14-0L6H-A4P Use this 3-way proportional pressure regulator from Festo to regulate force in your pneumatic systems precisely and flexibly. It features a multi-sensor control to give you reliable, dynamic and speedy results. There are three default presets that you can choose from at the click of a button, making installation and activation quick and simple. Because its IO-link compatible, you can easily connect it to your factory automation setup to improve productivity.• Integrated pressure sensor with independent output • Pressure is maintained in case of controller failure • Choice of different setpoint specifications, such as current or voltage input, for flexibility in modular systems • Clear LED (light-emitting diode) indicators make it easy to inspect and maintain your systems Application Information • Printing presses • Packaging industry • Welding machinery How much power does this pressure regulator consume? This pressure regulator from Festo has a maximum power consumption of 7 W and maximum current consumption of 300 mA. Is this regulator waterproof? Yes, this pneumatic regulator has an ingress protection rating of IP65, meaning its dust-tight and protected against water projected from a nozzle.
