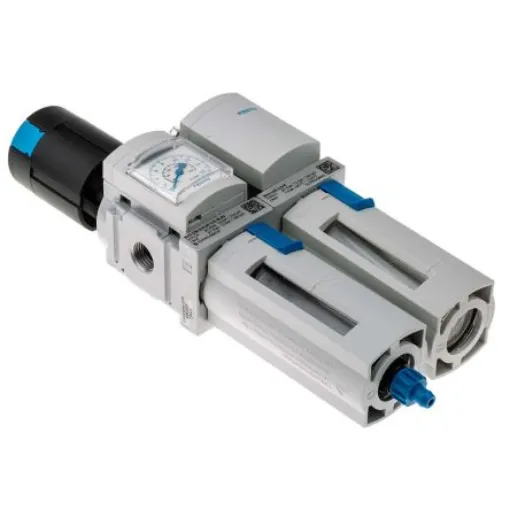

Festo G 1/4 FRL, Manual Drain, 40µm Filtration Size - With Pressure Gauge - MSB4-1/4-FRC5:J1M1

Festo Filter Regulator, Manual Drain, 40µm, G 1/4 FRL - MS Series - MSB4-1/4-FRC5:J1M1 This combination air preparation service unit from Festo includes a filter regulator with an integrated pressure gauge and mist lubricator. Its suited to pressures of up to 14 bar and provides a high flow rate for the quick release of energy and high-speed motion of moving pneumatic parts. The system is kept well oiled, thanks to the units mist lubricator, which also reduces grease consumption. Its robust housing has outstanding corrosion resistance, which helps to increase the units service life even in harsh environmental conditions.• Plastic bowl material • Manual drain type • Filtration size of 40 µm • Pressure setting range of 0.5 to 12 bar • Minimum operating pressure of 1.5 • G 1/4 port connection with thread size of 1/4 in • G 1/4 pressure gauge port with thread size of 1/4 in • Operating temperature range of -10°C to +60°C Range Information • The modular structure of Festos MS series makes it easy to combine components as needed and individually replace them without dismantling the entire air preparation system • Because the units can be configured to meet individual requirements, theyre suitable for standard or customised applications • The MS series provides optimal flow rates and excellent energy efficiency
