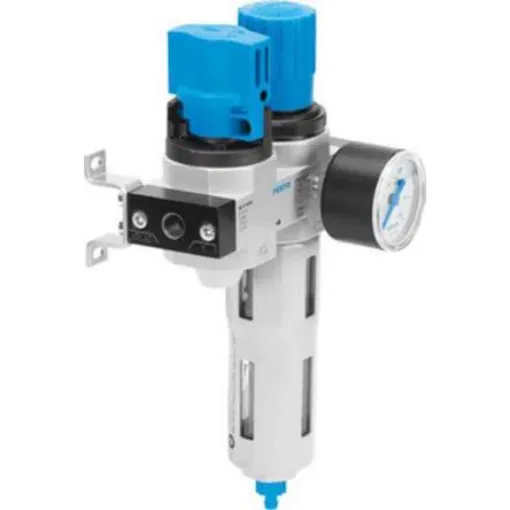

Festo G 1/4 FRL, Automatic Drain, 40µm Filtration Size - With Pressure Gauge - LFR-1/4-D-MINI-KC-A

Festo Automatic Drain, G 1/4, 40 µm Filtration Size - LFR Series - LFR-1/4-D-MINI-KC-A Use this Festo filter regulator to clean and control the supply of compressed air to downstream pneumatic equipment. The modular component includes a lubricator to add controlled quantities of tool oil into the system, which is necessary to reduce the friction of moving parts. You can set a fixed operating pressure with the lockable rotary knob. An automatic drain eliminates the need for manual condensate release. Components like these with a filtration size of 40 microns are ideal for protecting most industrial pneumatic equipment from contaminants.• One-way flow control function • G 1/4 port connection • Maximum condensate volume of 22 cm³ • Operating pressure of 2 bar to 12 bar • Standard nominal flow rate of 1150 l/min • Threaded mounting type for assembly in any position • Slotted head screw adjusting element • Ambient temperature range of -10°C to +60°C • Mini size Range Information • Festo D series includes space-saving components that combine a filter and regulator in a single unit • There are manual, semi-automatic or fully automatic condensate drain options • All FLR D series units feature good particle separation and high flow rates for the optimal supply of compressed air • The units have low hysteresis (lag) and perform consistently despite varying pressureThe Festo one-way flow control function for supply air with swivel joint has a threaded mounting type and can be assembled in any position. Here, threaded plug is made of brass material with a zinc die-casting for swivel fitting. Its pneumatic connectionAmbient temperature -10 to 60 °C Slotted head screw adjusting element
