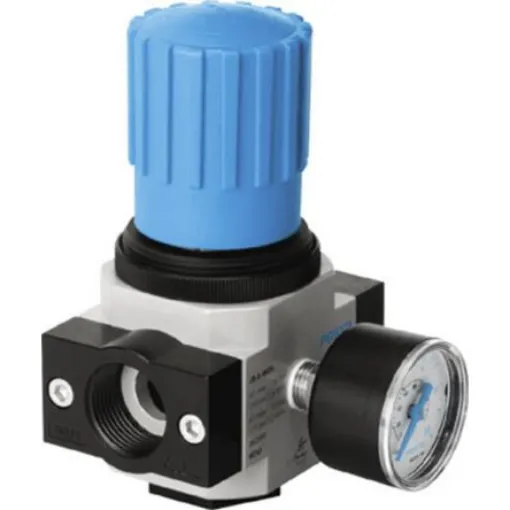

Festo G 1/2 Pneumatic Regulator - 0.5bar to 7bar, 16bar max. input, 192358 - LR-1/2-D-7-DI-MAXI
Achieve precise pressure control with the Festo G 1/2 Pneumatic Regulator, ideal for various applications.
Manufacturer part number: LR-1/2-D-7-DI-MAXI
GTIN: 4052568150945
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/2
Maximum Outlet Pressure = 7bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 16bar
Manufacturer Series = D
Typical Flow Rate = 7300L/min
Model Number p = 192358
The Festo pressure regulator LR-1/2-D-7-DI-MAXI Directly-controlled regulator, working pressure up to 7 bar. Also suitable for front panel mounting it has two pressure gauge connections for different fitting options. Good regulating characteristics with minimal pressure hysteresis.Size Maxi Series D Actuator lock Rotary knob with lock Assembly position Any Design structure directly-controlled diaphragm regulator
