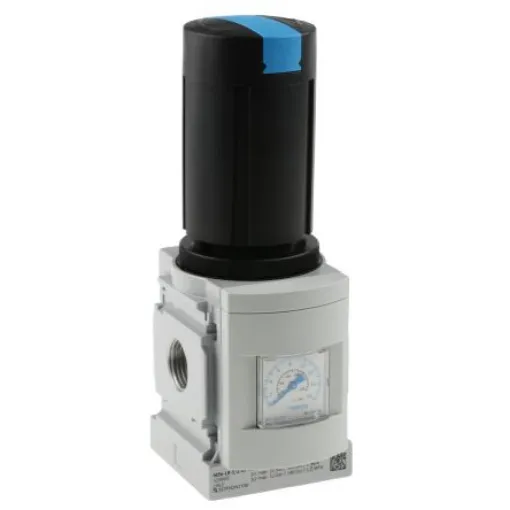

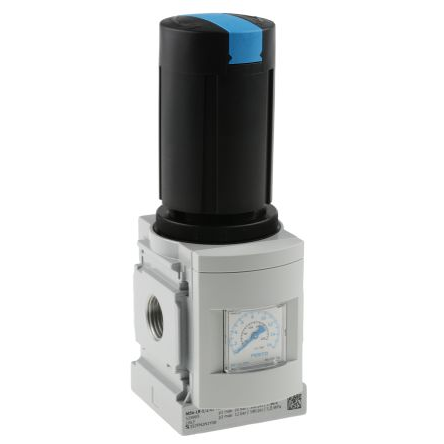

Festo G 1/2 Pneumatic Regulator - 0.5bar to 12bar, 1/2in, 14bar max. input, 529993 - MS6-LR-1/2-D7-AS

Port Connection = G 1/2
Maximum Outlet Pressure = 12bar
Minimum Outlet Pressure = 0.5bar
Maximum Input Pressure = 14bar
Manufacturer Series = MS
Pressure Gauge Port Size = G 1/2
Port Connection Thread Size = 1/2in
Pressure Gauge Port Thread Size = 1/2in
Maximum Flow Rate = 7500L/min
Typical Flow Rate = 5500L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C
Overall Width = 77mm

MS-LR Series Pressure Regulator. Festo MS-LR series pressure regulators maintain a constant working pressure, regardless of the pressure variations in the system and air consumption. The MS-LR series features excellent regulation characteristics with low hysteresis and primary pressure compensation. Features and Benefits. ;ul> ;li>The MS-LR series feature regulators which are available with and without secondary venting ;/li> ;li>They benefit from a high flow rate with minimal pressure drop ;/li> ;li>Two pressure gauge connections allow for different fitting options, with a return flow option already integrated within the pressure regulator ;/li> ;li>The pressure regulator has a compressed air and inert gases operating medium, with a directly controlled diaphragm regulator design structure ;/li> ;li>Optional pressure sensor and rotary knob pressure gauge ;/li> ;li>For installation into a control panel ;/li> ;/ul>
