Festo G 1/2 Pneumatic Regulator - 0.06bar to 6bar, 1/2 in, 8bar max. input, 575242 - VPPM-12L-L-1-G12-0L6H-A4P-S1
Achieve precise pressure control with the Festo G 1/2 Pneumatic Regulator, designed for optimal performance.
Manufacturer part number: VPPM-12L-L-1-G12-0L6H-A4P-S1
GTIN: 4052568223823
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/2
Maximum Outlet Pressure = 6bar
Minimum Outlet Pressure = 0.06bar
Maximum Input Pressure = 8bar
Manufacturer Series = VPPM
Port Connection Thread Size = 1/2 in
Typical Flow Rate = 4500L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +60°C
Model Number p = 575242

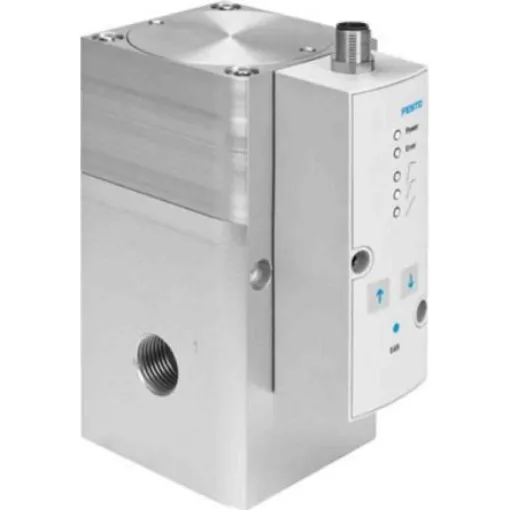

The Festo VPPM Modular proportional pressure regulator is a 3/2-way in-line valve design with G 1/2 thread connection. The pressure range is up to 6 bar with analogue set point of 4 to 20mA.Nominal diameter, exhaust - 12 mm Accuracy - 1% Assembly position - any
