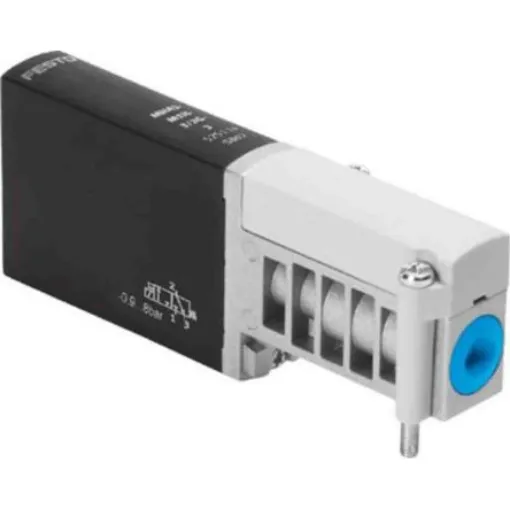

Festo 3/2 Closed, Monostable Solenoid Valve - Electrical MHA3 Series, 525135 - MHA3-MS1H-3/2G-3

Function = 3/2 Closed, Monostable
Actuation Type = Electrical
Manufacturer Series = MHA3
Mounting Style = Manifold
Number of Ports = 2
Body Material = Die Cast Zinc
Maximum Flow Rate = 200L/min
Minimum Operating Pressure = -0.9bar
Maximum Operating Pressure = 8 bar°C

Festo 3/2 Closed Monostable Solenoid Valve, Electrical - MHA3 Series - MHA3-MS1H-3/2G-3 This fast-switching valve from Festo has a response time of 2 milliseconds. Its designed for controlling compressed air in high-speed automation systems. The units consistent accuracy improves mechanical processes and ensures steady, high-quality production. Its modular structure means you can retrofit the valve into existing systems or use it as a pacesetter for new pneumatic connections. This compact valve is also suitable for use with air ejectors and in flap control systems.• Pressure relived poppet valve design structure • Mechanical spring reset • Operating pressure range of -0.9 to 8 bar • Standard nominal flow rate of 200 l/min • Maximum switching frequency of 28 Hz • Nominal size of 3 mm • Soft-sealing to prevent leaks • Reversible flow direction • Manifold mounting style Range Information • The fast-switching valves from Festos MH range can be used directly in a variety of applications without additional protective measures • The components built-in electronics enable a constant dynamic response independent of temperature or supply voltage fluctuations • HM units offer optimum efficiency with an extremely long service life of 500 million cycles and continuous three-shift operation with no need for maintenanceThe Festo solenoid valve used individual valve and has fast switching which used pressure-relieved poppet valve of structure and used mechanical spring for reset. Its width size is 14 mm and used operating pressure up to -0.9 - 8 bar. Its standard nominal flow rate is 200 l/min. Its nominal size is 3mm and it is reversible.Ambient temperature is -5°C to 40 °C Zinc die-casting used for housing material
