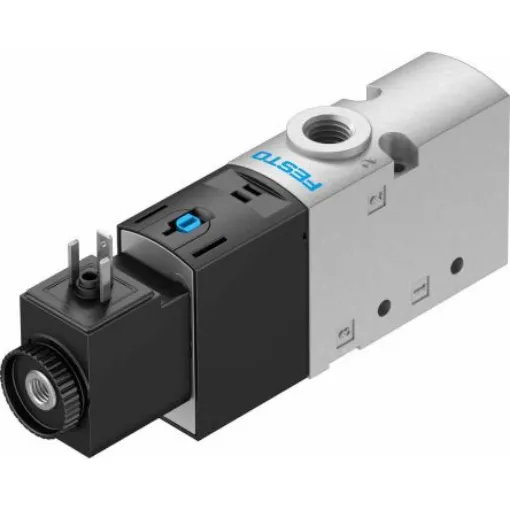

Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/8 VUVS Series, 575274 - VUVS-L20-M32C-MD-G18-F7-1C1
Compact Festo solenoid valve with high flow rate and reliable performance.
Manufacturer part number: VUVS-L20-M32C-MD-G18-F7-1C1
GTIN: 4052568103798
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Function = 3/2 Closed, Monostable
Connection Port Thread = G 1/8
Actuation Type = Electrical
Manufacturer Series = VUVS
Mounting Style = Manifold
Solenoid Fitted = Yes
Number of Ports = 3
Body Material = Aluminium
Maximum Flow Rate = 700L/min
Solenoid Power Consumption = 2.6W
Minimum Operating Pressure = 2.5bar
Maximum Operating Pressure = 10 bar°C
Thread Standard = G
The Festo solenoid valve is small, compact and have high flow rate. It has piston slide of structure and used mechanical spring for reset. Its valve size is 14 mm and used operating pressure up to 2.5 - 10bar.Ambient temperature is -5 °C to 60 °C Aluminium alloy used for housing material
