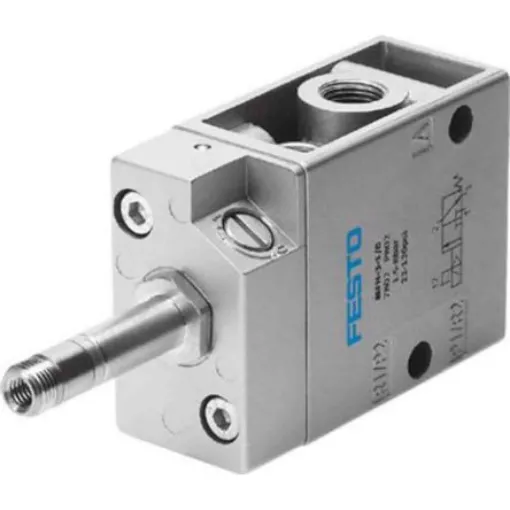

Festo 3/2 Closed, Monostable Solenoid Valve - Electrical G 1/8 MFH Series, 7958 - MFH-3-1/8-S

Function = 3/2 Closed, Monostable
Connection Port Thread = G 1/8
Actuation Type = Electrical
Manufacturer Series = MFH
Mounting Style = Manifold
Solenoid Fitted = Yes
Number of Ports = 2
Body Material = Aluminium
Maximum Flow Rate = 500L/min
Solenoid Power Consumption = 4.5W
Minimum Operating Pressure = -0.95bar
Maximum Operating Pressure = 10 bar°C
Thread Standard = G

Festo 3/2 Closed Monostable Solenoid Valve, Electrical, G 1/8 - MFH Series - MFH-3-1/8-S This solenoid valve from Festo directs the flow of compressed air in pneumatic systems. The valve opens immediately when actuated, offering accuracy and a fast response time when you need it. Its also compatible with a variety of attachments. You can mount this valve on a manifold rail or using the optional through-hole method. The three-way, two-position valve is soft-sealing and durable, so its long-lasting. An IP65 rating means its sealed against dust and dirt, as well as waterjets. A mechanical spring reset makes it easy to use this valve repeatedly.• Electrical actuation type • G 1/8 port thread size • 3/2 closed monostable valve type • Standard nominal flow rate of 500 l/min • Operating pressure of -0.95 bar to 10 bar • Ambient temperature of -5°C to +40°C • Pilot actuated • Lubricated operation possible Range Information • The MFH series is Festos range of pneumatic valves which offer long-lasting service thanks to sturdy aluminium die-cast construction • Poppet valve design provides precise control, high flow rates and low leakage in a compact package • The units offer optimised response times with patented U-ring and servo control • A reliable coupling system ensures quick mounting and dismountingThe Festo solenoid valve with manual override without solenoid coil or socket and solenoid coil and socket should be ordered separately. It has piston slide of structure and its width size is 26 mm and used operating pressure up to -0.95 - 10 bar. Its standard nominal flow rate is 500 l/min.Ambient temperature is -5°C to 40 °C Aluminium die cast material used for housing material
