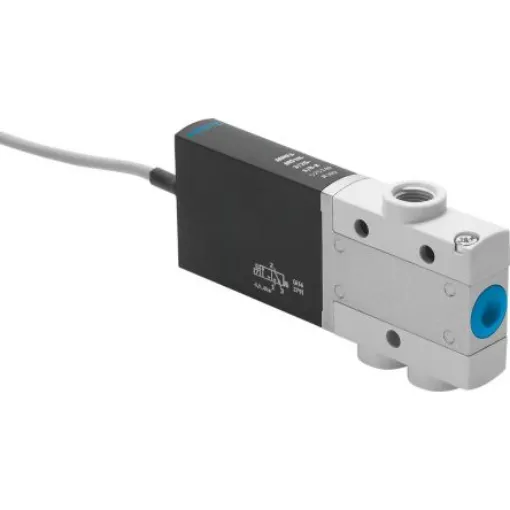

Festo 3/2 Closed, Monostable Pneumatic Solenoid/Pilot-Operated Control Valve - Electrical MHE3 Series, 525148 - MHE3-M1H-3/2G-1/8-K

Function = 3/2 Closed, Monostable
Actuation Type = Electrical
Manufacturer Series = MHE3
Mounting Style = Through Hole
Number of Ports = 3
Body Material = Die Cast Zinc
Minimum Operating Pressure = -0.9bar
Minimum Operating Temperature = -5°C

The Festos solenoid valve used with cable which has highly durable valve are available with 3/2 closed, monostable way valve function which used G1/8 thread connection pipe size. Its width size is 14 mm and used operating pressure up to -0.9 - 8 bar which standard nominal flow rate is 200 l/min.Ambient temperature -5 to 60 °C Protection class IP65
