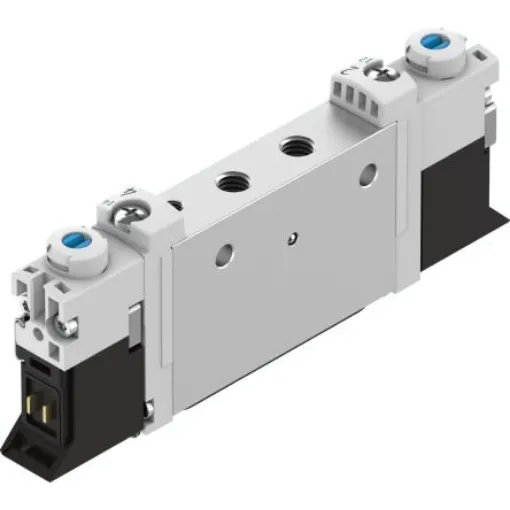

Festo 2x3/2 Closed, Monostable Solenoid Valve - Electrical Metric M5 VUVG Series 24V dc, 566454 - VUVG-L10-T32C-AT-M5-1P3
Compact Festo solenoid valve with high flow rate and reliable performance for various applications.
Manufacturer part number: VUVG-L10-T32C-AT-M5-1P3
GTIN: 4052568213657
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Function = 2x3/2 Closed, Monostable
Connection Port Thread = Metric M5
Actuation Type = Electrical
Manufacturer Series = VUVG
Mounting Style = Manifold
Solenoid Voltage = 24V dc
Solenoid Fitted = Yes
Number of Ports = 3
Body Material = Aluminium Alloy
Maximum Flow Rate = 150L/min
Solenoid Power Consumption = 1W
Minimum Operating Pressure = 1.5bar
Minimum Operating Temperature = -5°C
The Festo solenoid valve is small, compact and have high flow rate. It has piston slide of structure and used mechanical spring for reset. Its valve size is 14 mm and used operating pressure up to 1.5 - 8 bar.Ambient temperature is -5 °C to 60 °C Aluminium alloy used for housing material
