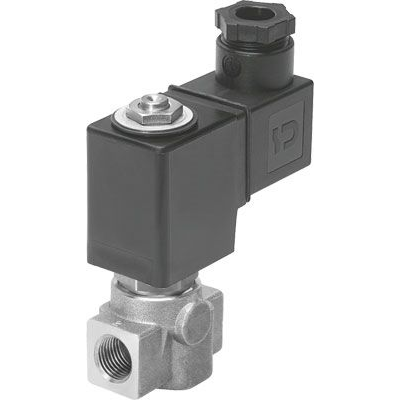

Festo 2/2-Way, Closed, Monostable Pneumatic Solenoid Valve - Electrical G 1/4 VZWD Series, 1491861 - VZWD-L-M22C-M-G14-40-V-1P4-8-R1

Function = 2/2-Way, Closed, Monostable
Connection Port Thread = G 1/4
Actuation Type = Electrical
Manufacturer Series = VZWD
Mounting Style = Inline
Body Material = High Alloy Stainless Steel
Maximum Flow Rate = 0.3m³/h
Thread Standard = G

The valve seat is raised by the actuator alone. A closing spring holds the valve closed, with the support of the pressure of the medium. In cases of pressure loss, a normally closed function closes the valve automatically. The maximum pressure range for the medium to be controlled is governed by the ratio of the valve seat size and the solenoid used.Can be operated with water, air and neutral media Integrated N/C function Applications requiring an operating pressure from 0 to 90 bar Applications with a closed media circuit Applications with high pressures and low flow rates Applications with media with a viscosity of up to 22 mm²/s Vt Vacuum systems down to 100 mbar Venting gas and storage tank installations Safety shut-off functions in burner management systems Low-pressure gas supplies for industry and households
