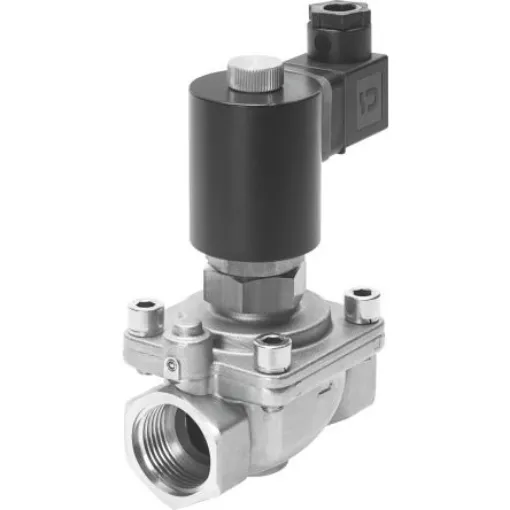

Festo 2/2 Solenoid Valve - Solenoid/Pilot G 3/4 VZWF Series 24V dc, 1492113 - VZWF-B-L-M22C-G34-275-1P4-6

Function = 2/2
Connection Port Thread = G 3/4
Actuation Type = Solenoid/Pilot
Manufacturer Series = VZWF
Mounting Style = Inline
Solenoid Voltage = 24V dc
Solenoid Fitted = Yes
Body Material = Brass
Maximum Flow Rate = 8020L/min
Solenoid Power Consumption = 11W
Minimum Operating Pressure = 0bar
Maximum Operating Pressure = 6bar
Thread Standard = G

VZWF Series Solenoid Valves. A force pilot operated solenoid valve that can be used with water, air, and neutral media. The VZVF series of valves uses relatively small solenoids to control high pressures with large nominal diameters. Actuation is supported by the pressure of the medium. They can switch at pressures as low as 0 bar and close automatically in the case of a pressure loss in the circuit. Operating pressure ranges from 0 bar to 10 bar, depending on coils used and nominal diameter. Features and Benefits. 2/2 way normally closed poppet valve with a return spring Use with air, water or neutral media Inline mounting Operates from 0 bar 5 valve sizes available from G to G1 Brass housing with a NBR seal. Applications. Ideal for use in closed media circuit applications and in industries such as water treatment, pipeline construction, petrochemical, pneumatics and pump systems.
