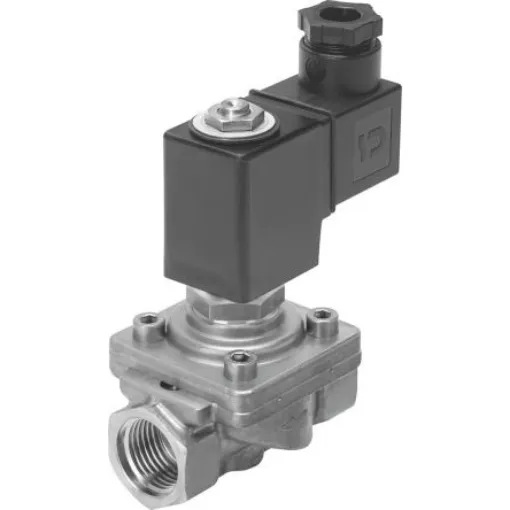

Festo 2/2 Solenoid Valve - Solenoid/Pilot G 1/2 VZWF Series, 1492136 - VZWF-B-L-M22C-G12-135-E-1P4-10-R1
Reliable Festo 2/2 solenoid valve for efficient pneumatic control.
Manufacturer part number: VZWF-B-L-M22C-G12-135-E-1P4-10-R1
GTIN: 4052568235420
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Function = 2/2
Connection Port Thread = G 1/2
Actuation Type = Solenoid/Pilot
Manufacturer Series = VZWF
Mounting Style = Inline
Solenoid Fitted = Yes
Number of Ports = 2
Body Material = Cast Stainless Steel
Maximum Flow Rate = 2.5m³/h
Solenoid Power Consumption = 11W
Minimum Operating Pressure = 0bar
Maximum Operating Pressure = 10bar
Thread Standard = G
VZWF-B-L-M22C-G12-135-E-1P4-10-R1 - 2/2 Way Solenoid ValveIn-line valve - designed to be used without pneumatic linking. All pneumatic connections are on the valve and can be equipped with fittings/tubing. Diaphragm valve design principle 2/2 Way valve function Force pilot operated G1/2 thread pneumatic connection
