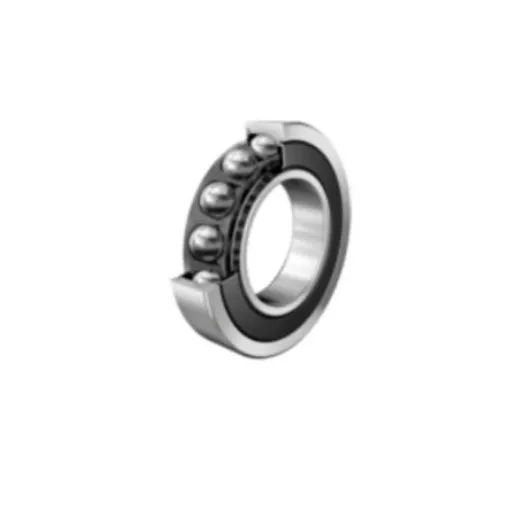

FAG 7005-B-XL-2RS-TVP Single Row Angular Contact Ball Bearing- Both Sides Sealed 25mm I.D, 47mm O.D
High-performance FAG angular contact ball bearing, ideal for combined loads and high speeds.
Manufacturer part number: 7005-B-XL-2RS-TVP
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 25mm
Outside Diameter = 47mm
Race Width = 12mm
Ball Bearing Type = Single Row Angular Contact Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Plastic
Number of Rows = 1
Static Load Rating = 9.9kN
Dynamic Load Rating = 16kN
Bore Type = Parallel
Bearing Series = 0 Extra Light
Partial Bearing Code = 7005
Bearing arrangements must support combined loads, i.e. radial and axial loads acting simultaneously Moderate to high axial loads are present on one side Rigid axial guidance is required The bearing arrangement must be axially clearance-free or preloaded High speeds are required under higher radial and axial loads The bearing arrangement is to run quietly in addition to meeting the requirements stated above
