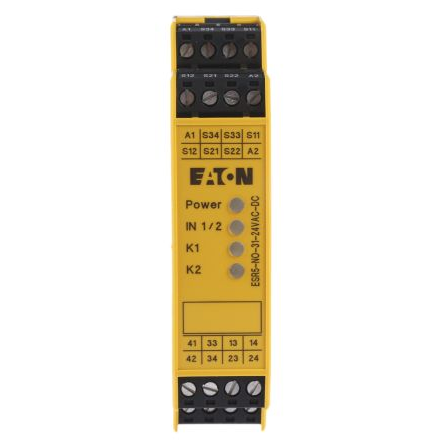

Eaton Electronic Safety Relays ESR5 Emergency Stop Safety Relay, 24V ac/dc, Dual-Channel, 3 Safety Contacts - 118702 ESR5-NO-31-24VAC-DC

Supply Voltage = 24V ac/dc
Number of Channels = 2
Safety Contacts = 3
Function = Emergency Stop
Reset Method = Automatic & Manual
Range = Electronic Safety Relays
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Series = ESR5mm
Performance Level = emm

The ESR5-NO-31 All in one Safety Relay – Safety and control relay combined in a single device The Eaton ESR5 NO 31 safety relay, with built-in multi-channel (4 Safety contacts) offers you versatile analysis of potential hazards in your machine moving environment. This model of ESR5 allows you to control all your safety devices such as emergency stops buttons, movable guards, light curtains or two hand monitoring controls. In the unlikely event there is a failure or hazard detected, the ESR5 NO 31 will work quickly to switch off the power to the machine. What are some of the features? • Internal logic of the safety relay will monitor your entire safety circuit and all connect peripherals such as (emergency stop buttons, safety doors or light curtains) and will run the path for you when in a fault-free state. • This particular model offers you one or two channel variants so you can implement your safety appliances. • In the event of a fault, the safety relay will quickly engage its primary function in cutting off power to the affected area/s. • Detect faults before at the input level using integrated diagnostic devices. Advantages of the ESR5 NO 31 Safety Relay • Narrow in width allowing you to house more important safety devices in your area where space may be an issue. • Wide range of features offered with the device, allowing you to stay flexible and able to respond immediately to current or future changes in application requirements. This will save you cost & time in the long term. • Many safety switching contacts and up to 5 enable and 2 signal current paths • Approved to TÜV Rheinland, UL/CUL, CSA • Economic monitoring Technical safety parameters • Up to Performance Level PL e to EN ISO 13849-1 • Up to Safety Integrity Level SIL CL 3 to IEC 62061
