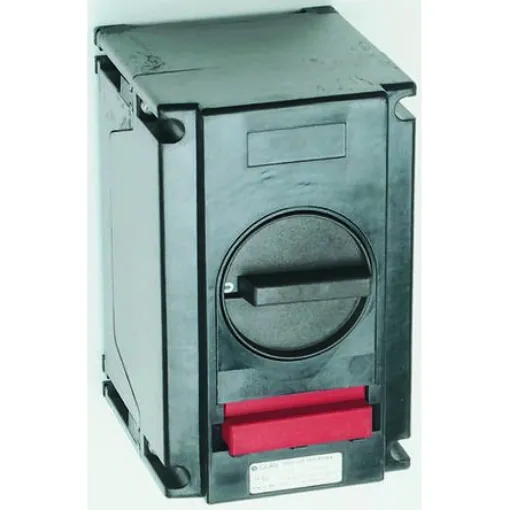

Eaton DOL Starter, DOL, 690 V ac, IP66 - GHG6351101R0109
Eaton DOL Starter provides robust motor control with IP66 protection for reliable performance.
Manufacturer part number: GHG6351101R0109
GTIN: 4250217428746
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Motor Starter Type = DOL
Voltage Rating = 690 V ac
IP Rating = IP66
Motor Starter Functionality = Manual
Overall Length = 225mm
Enclosure = Yes
Overall Width = 140mm
Hazardous Area Certification = ATEXmm
II 2 G EEx de II C T S or T6. PTB 99 ATEX 1162. Short-circuit protection up to 100kA and maximum back-up see 'key characteristics' table. Motor Starter. Single-phase failure via thermal electromagnetic trips are featured in these circuit breakers/manual motor starters. The respective switch position is clearly indicated by the switch handle. Terminals are protected against accidental contact. They have a terminal cross section of up to 10mm² for the connection of single or multi-wire conductors. The external contours of the enclosure allow easy access to the connection terminals and easy installation. Connection terminals accessible from all sides IP66 to EN60529 rating Isolating properties to DIN EN 60947-3 690Vac upto 25A rating Single phase failure protection Padlocking facility via red button Clear indication of switch position 268mm x 140mm x 150mm (H/W/D)
