Eaton DOL Starter, DOL, 5.5 kW, 400 V ac, IP65 - 118541 XDRP5,5/I(400V50HZ,440V60HZ)

Power Rating = 5.5 kW
Motor Starter Type = DOL
Voltage Rating = 400 V ac
IP Rating = IP65
Number of Poles = 3P
Motor Starter Functionality = Automatic
Reversibility = Yes
Additional Features = Disconnect Switch Included
Overall Length = 280mm
Enclosure = Yes
Overall Width = 200mm
Overall Depth = 160mm

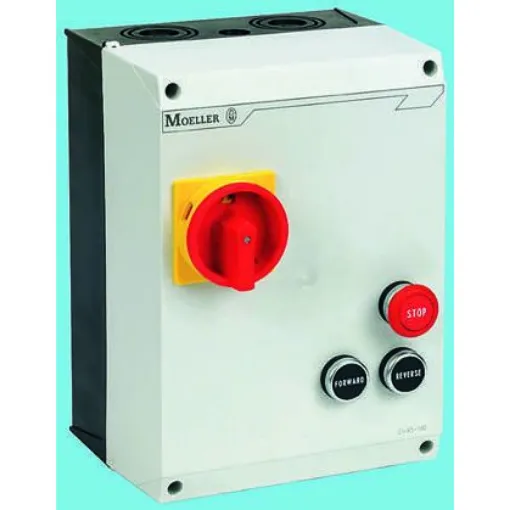

FLC figures quoted are maximum, other overload ratings can be used dependant on FLC rating.The starters which use the X Start range of components are not compatible with DILM components. Reversing D.O.L - Insulated. Totally Insulated enclosed starter complete with isolator for Reversing DOL applications to comply with IEE Regulations, 16th Edition on Isolation and Switching.The polycarbonate enclosure is IP65 with a light grey lid (RAL 7035) and black (RAL9005) base, they are fitted with AC-3 rated triple pole contactors, triple pole AC-3 rated switch disconnector and IP65 Stop, Forward and Reverse pushbuttons. The disconnector has the provision for up to 3 padlocks.The enclosure is pre-wired to accept the ZB thermal overloads which offer single phasing sensitivity to IEC 947-4. Overload relay is not supplied and must be ordered separately Uses ZB12 overloads (typical example stk. no. ; 493-1239 493-1239 ) Fitted with metric knockouts H280 x W200 x D160mm
