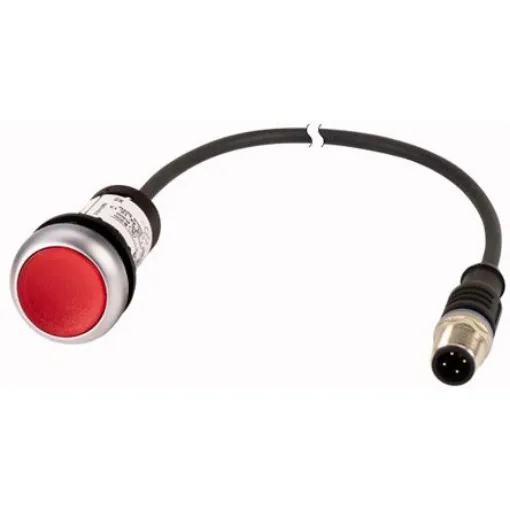

Eaton C22 Series Illuminated Push Button, Panel Mount, 22mm Cutout, SPST, IP67, IP69K - 181368 C22-DRL-R-K01-24-P5

Illuminated = Yes
Series = C22mm
Mounting Type = Panel Mount
Push Button Colour = Red
Contact Configuration = SPST
Push Button Style = Round
IP Rating = IP67, IP69K
Push Button Diameter = 29.7mm
Push Button Material = Plastic
Manufacturer Part No. = 181368 C22-DRL-R-K01-24-P5

C22 Compact Illuminated Push Buttons With Flying Lead. Eaton's C22 compact illuminated push buttons, also known as a push button switch or control, come complete with flying lead attached. They offer an array of functional, attractive, and ergonomically designed all-in-one push buttons. The complete illuminated push buttons feature LEDs to ensure high-quality brightness and up to 100000 hours of LED illumination. The C22 series complete unit design with integral contact block, LED and operator provides a simple solution for all industrial push button requirements. Available as momentary or maintained switching, with maintained push buttons field convertible to momentary. Applications:. Push buttons are often used as part of a control station to operated machinery switching them from on to off. They are often provided with a rugged casing for the buttons, which offers protection from rigorous use and in potentially hazardous environments. Features and Benefits. 0.5 m or 1 m flying lead with M12A 4 pole connector LED illumination Heavy-duty corrosion resistant construction Silver coloured nylon bezel Notched hole mounting with anti-rotation tab and central nut mounting on each operator Rated for up to 5 million mechanical operations
