CAMDENBOSS 9-Contact Female Interface Module, Screw Terminal Connector, DIN Rail Mount, 500mA - CIM/RJ45
Easily connect your devices with the CAMDENBOSS RJ45 Interface Module, designed for simple DIN rail mounting.
Manufacturer part number: CIM/RJ45
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.

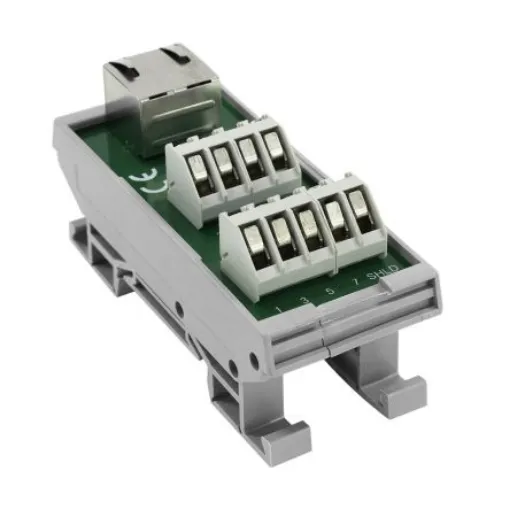

RJ45 Interface Module. The CIM/RJ45 is a female single RJ45 (8P8C) type socket to screw terminals interface module. The terminals are marked 1 to 8 (+ shield) with a separate shield connection. Features and Benefits:. 45° terminals for easy access Screw terminal interface Cable entry - 0.2 to 4 mm² (30-12 AWG) M3 terminal screw 6mm strip length Weight 38g Base material is plastic Rating 125 V dc 500mA. Applications:. The RJ45 DIN mounting interface module is suitable for 35 mm DIN rail mounting.
