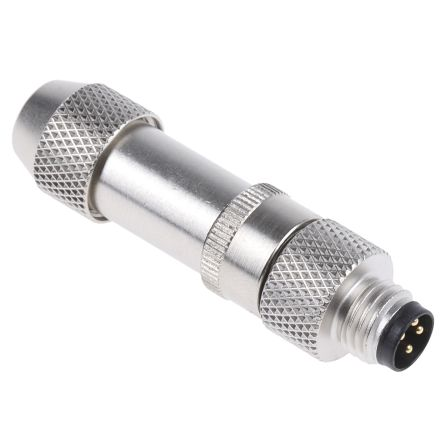

binder Circular Connector, 4 Contacts, Cable Mount, M8 Connector, Socket, Male, IP67, 768 Series - 99-3363-00-04
Durable M8 circular connector with 4 contacts, IP67 rated for reliable performance in harsh environments.
Manufacturer part number: 99-3363-00-04
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Contacts = 4
Mounting Type = Cable Mount
Connector Size = M8
Plug/Socket = Socket
Contact Gender = Male
Termination Method = Solder
IP Rating = IP67
Current Rating = 4.0A
Series = 768
Voltage Rating = 30.0 V
Housing Material = Metal
Contact Plating = Gold
Minimum Operating Temperature = -25°C
Binder Sensor ConnectorThe Binder 768 series 4-contacts, M8 male sensor connector has a socket type connection. This cable mount connector has a voltage rating of 30V and a current rating of up to 4A per contact. This connector is made of polyamide with nickel plating and gold-plated brass contacts. It supports a screw-on locking mechanism for sturdy mating attenuation and reliable contact.Features and BenefitsStraight body orientation Screw termination Durability is greater than 100 mating cycles Shieldable Wire gauge is 24AWG Cable outlet ranges between 3.5mm and 5mm Operating temperature ranges between -40°C and 85°CApplicationsProcess control Industrial automation and instrumentation Commercial electronicsCertificationsIP67 rated UL approved
